Lidar Operations

Contents -- Physical Configurations | Beamwidth | Detection Range | Test and Calibration
Physical Configurations

Laser radars are single unit hand held devices. Some can be mounted to a tripod to make it easier to keep the narrow beam on target. Some models have an optional shoulder mount. Some units are designed like oversized binoculars.

Lidar Configurations
Hand Held Binocular Form
Aiming Heads Up Display
or Scope
Cross-hairs Projected
onto Eyepiece
Display Large Speed and
Range Display.
Speed and Range
Projected onto Eyepiece.
Power Source Internal Batteries and/or
Vehicle Battery DC plug.
Internal Battery
Mounting Options - Tripod
- Shoulder Mount
Timing Mode Most Models
Laser Mode Stationary
Range Only Most Models
Traffic On-coming (+) and/or Going (-)
Transmissions Instant On
Speed Tone Audio Tone Proportional to Speed

Status and Fault Indicators
Status Mode
XMIT Transmitting
STBY Standby
RFI Radio Frequency Interference
BIT Err Built-In Test Error
Low Volt Low Voltage condition

Most lidar manufacturers caution not to point the aperture directly at the sun. Direct sunlight has enough energy to cause damage by burning out the infrared detector diodes.

Many lidars have a Timing Mode. The range between two points is measured and entered into the lidar. The operator pushes a button when a target passes between the two points and the lidar displays the calculated speed without ever transmitting.

Sponsored links

Beamwidth

Laser radars have narrow beams on the order of 3 - 4 milliradians (mR), 0.17° - 0.23°. The narrow beam allows the operator to single out vehicles at relatively short ranges. Lidars also require the operator to precisely aim the laser at the same point on the target vehicle.

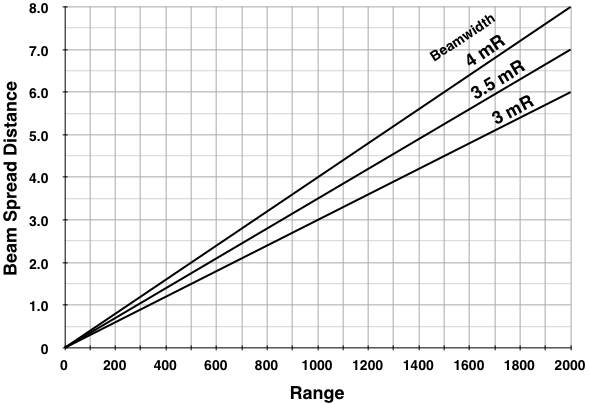

Laser Radar Beam Spread

Fig 5.2-1

d = 2 R tan ( ß / 2)
d = beam spread distance
R = range
ß = beamwidth or beam divergence

In the figure and equation above, range and beam spread distance are in the same unit dimensions, feet, meters, etc.

Laser radars are very selective at ranges less than 500 feet, beam spread is a couple of feet or less. Over 500 feet the beam can reflect off of different parts, different ranges, of a target vehicle introducing errors. At 1000 feet the beam spread is 3 - 4 feet, wide enough to reflect off of other vehicles with just a little aim error.

Beam Spread
in feet (') or inches (in)

Range
feet
Beamwidth
3.0 mR
0.17°
3.5 mR
0.20°
4.0 mR
0.23°
100 3.6 in 4.2 in 4.8 in
200 7.2 in 8.4 in 9.6 in
300 10.8 in 12.6 in 14.4 in
400 1.2' 1.4' 1.6'
500 1.5' 1.8' 2.0'
600 1.8' 2.1' 2.4'
700 2.1' 2.5' 2.8'
800 2.4' 2.8' 3.2'
900 2.7' 3.2' 3.6'
1000 3.0' 3.5' 4.0'
2000 6.0' 7.0' 8.0'
Calculate
Beam Spread (d)

R = Range:
ßw = Beam: milliradians

Beamwidth Spread Distance

Sponsored links

Detection Range

Snow and sleet reduce detection much like rain, the more water molecules the greater the reduction.

Some lidar manuals suggest aiming the beam at the license plate for best performance. Maximum detection range is maybe a half mile in good weather. A vehicle can be made stealthy by removing the license plate and covering all chrome parts, headlights, tail lights, parking lights, and turn signal lights with black tape.

Atmospheric Conditions
Atmospheric conditions effect propagation and detection range. The best conditions for detection is an atmosphere that is cool, dry, and clear. Fog, rain, smoke, dust particles, carbon dioxide and water vapor reduce detection capability, sometimes to zero.

Lidar Range in Weather

Condition Range Reduction
Fog Most Severe
Rain Downpour Severe
Heavy Rain Severe
Rain / Drizzle Noticable
Dust Particles Noticable
Atmospheric Gases
- Carbon Dioxide (CO2)
- Water Vapor (H2O)
Slight
Snow and sleet reduce detection much like rain, the more water molecules the greater the reduction.
Sponsored links

Test and Calibration

Laser radars measure small range changes in short periods of time, this imposes tight tolerances on internal timing circuits. Aperture(s) to aim spot alignment is critical and also has very tight tolerances. The units should be tested by the operator before use.

Static Test and Checks
Check Lidar Calibrated. Most states require a lidar be tested by a certified shop periodically, typically once or twice a year. A sticker on the lidar, or records, should indicate last calibration test, next (due) test, and who tested.
Run Lidar Self-Test. Self test should be run before, during, and after use.
Check Beam Alignment. Lidar is swept pass a utility pole or a stop sign at 250 - 500 feet or greater. A range reading should only occur when object sweeps across the aim circle or crosshairs. Vertical and horizontal angles should be checked.
Test Stationary Object Range. Lidar range measurement checked against a utility pole or stop sign of know distance, 250 - 500 feet or greater.
Operational Test
Test Lidar against Vehicle of Known Speed. Test vehicle should have a calibrated speedometer. Best to run test at operational location.

Tuning forks do not register speed on laser radar.

External optical surfaces, aperture, aim scope or heads up display, should be periodically cleaned exactly as recommended by the manufacturer. Additionally all optical surfaces should be covered or capped when not in use to prevent damage. Scratches, pits, and stains in the aperture can degrade detection performance, beam direction and alignment to aiming device.

Lidar Self-Test
Self Test run;
  • on power up
  • operator initiated
  • automatically after a speed is locked
  • any or all the above
Test / Automatic Adjustments
  • supply voltage - car or internal battery
  • a test target signal
  • portions of the digital circuits
  • optics
  • display indicators
  • any or all the above

Laboratory / Shop Calibration
Some agencies require periodic, once or twice per year, additional checks and tests above and beyond everyday routine testing. Rigorous tests should include;

Lidar Self-Test
  • speed accuracy for multiple speeds
  • range accuracy for multiple ranges
  • transmit power to radiation aperture
  • radiation field strength at 3 meters or more
  • vertical and horizontal beam divergence
  • IR detector sensitivity
  • power supply limint (± volts)
