ProLaser II / ProLaser
Kustom Signals, Inc.
ProLaser II is IACP approved
OPERATION
- single-unit hand-held system
optional window mount
optional monopod/tripod mount
supply voltage -- car battery
- HUD (Heads-Up Display)
allows operator to view target, illuminated aim dot and target speed in one window.
- Instant On
- stationary operation only
- measures speed and range for on-coming and/or going traffic
(also measures range of stationary objects)
- Target (moving) Acquisition Time
(longer time required for slower targets)
ProLaser II: 0.6 sec typical
ProLaser: 0.3 sec for 60 mph target
- stopwatch mode (ProLaser II only)
Operator measures (with ladar) distance between objects (stores distance in ladar memory), and pushes a button when a target passes each object (ladar calculates time between button pushes); ladar computes target speed from distance (known) divided by time (button pushes); and displays calculated target. Ladar does not transmit to calculate speed in this mode.

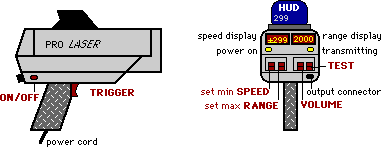

CONTROLS
- Transmit / Lock display
TRIGGER pressed -- transmitting
TRIGGER released -- display locked
speeds remains on display until next transmission
- Range Control -- set maximum range (5 foot increments) speeds displayed
- Speed Control
-- set minimum speed to activate output signal (camera, etc.)
-- indicates ladar set to measure traffic on-coming (+), going (-), or both directions ()
- Speed Control and Test switches
-- both switches (pushed simultaneously) sets the ladar to measure only traffic that is on-coming (TRGT APPR), going (TRGT RECD), or both directions (TRGT BOTH).
- Test
Checks display LED segments, test memory, test accuracy, displays software version (VERS/X.XX), displays programmed units (mph/ft or kmh/m), indicates on HUD if programmed for speed or range (SPED/RANG) display (displays HELP if any test failed). If failure detected operation is inhibited and the rear panel displays FAIL/XXXX, where XXXX is a message code used by the factory.
- Stopwatch Mode (ProLaser II only)
Operator inputs distance (300 to 4500 feet, 1 ft increments) between objects, and pushes a button when a target passes each object (ladar calculates time between button pushes); ladar computes target speed from distance (known) divided by time (button pushes). Calculated target speed displayed in target window, elapsed time (to tenths of a second) displayed in range window. Ladar does not transmit to calculate speed in this mode.
- Brightness -- adjust rear panel LEDs and HUD
- Volume control -- adjust aiming control tone
- On/Off (on handle) -- runs self-test (see 3 lines above) on power-up
DISPLAYS / INDICATORS
- HUD
1/4 inch aim dot (no operator alignment adjustments)
speed or range (depends on software installed)
HELP in place of speed or range indicates status message on LEDs.
-- Low Volt (supply voltage too low, operation inhibited)
-- RFI (Radio Frequency Interference, operation inhibited)
- Target Speed Display (LEDs)
5 to 299 mph (8 to 480 kmh)
displays minus (-) in front of speed for receding targets
accuracy: +/- 1 mph (+/- 2 kmh)
- Target Range Display (LEDs)
ProLaser II
20 to 2,000 feet (6 to 610 meters)
accuracy: +/- 1 foot (+/-0.3 meters)
ProLaser
50 to 2,000 feet (15 to 610 meters)
accuracy: +/- 1.25 feet (+/-0.5 meters)
Note, maximum range setting is 2,000 feet (MAXR), ladar still measures speed and/or range of objects up to 4,000 feet if the signal echo power is sufficient.
- Speaker
no tone -- no target
intermittent tone -- processing target
constant tone -- processing and displaying target speed / range
- Indicators
Transmitting
Power On
SPECIFICATIONS
The unit is programmable, some specifications and features, such as speed/range in English or metric units (mph/ft or kmh/m) are a function of software version installed. Some software versions display range (instead of speed) on HUD.
Target Acquisition Time
(longer time required for slower targets)
ProLaser II 0.6 sec typical
ProLaser 0.3 sec for 60 mph target
Sample Time 0.3 seconds (300 ms)
Speed Range on-coming and going traffic
5 to 299 mph (8 to 480 kmh)
Speed Accuracy +/-1 mph (+/- 2 kmh)
Antenna single aperture
Beamwidth 4 mrad (0.23 degrees)
Wavelength approx. 904 nm
supply voltage 10.8 to 16.5 Vdc (1.5 A max)
environmental -22 to 140 degrees Fahrenheit
(-30 to 60 degrees Celsius)
0 to 95 percent humidity (non-condensing)
storage temperature -40 to 176 degrees Fahrenheit
(-40 to 80 degrees Celsius)
PHYSICAL height 10 in (25.4 cm) includes handle
width 3.3 in ( 8.4 cm)
length 11 in (27.9 cm)
WEIGHT 4 lb., 4 oz. (1.9 kg)
Data Output for still or video camera
ProLaser II RS-232 serial port
ProLaser speed, direction, range, error messages
signals when preset speed/range met
